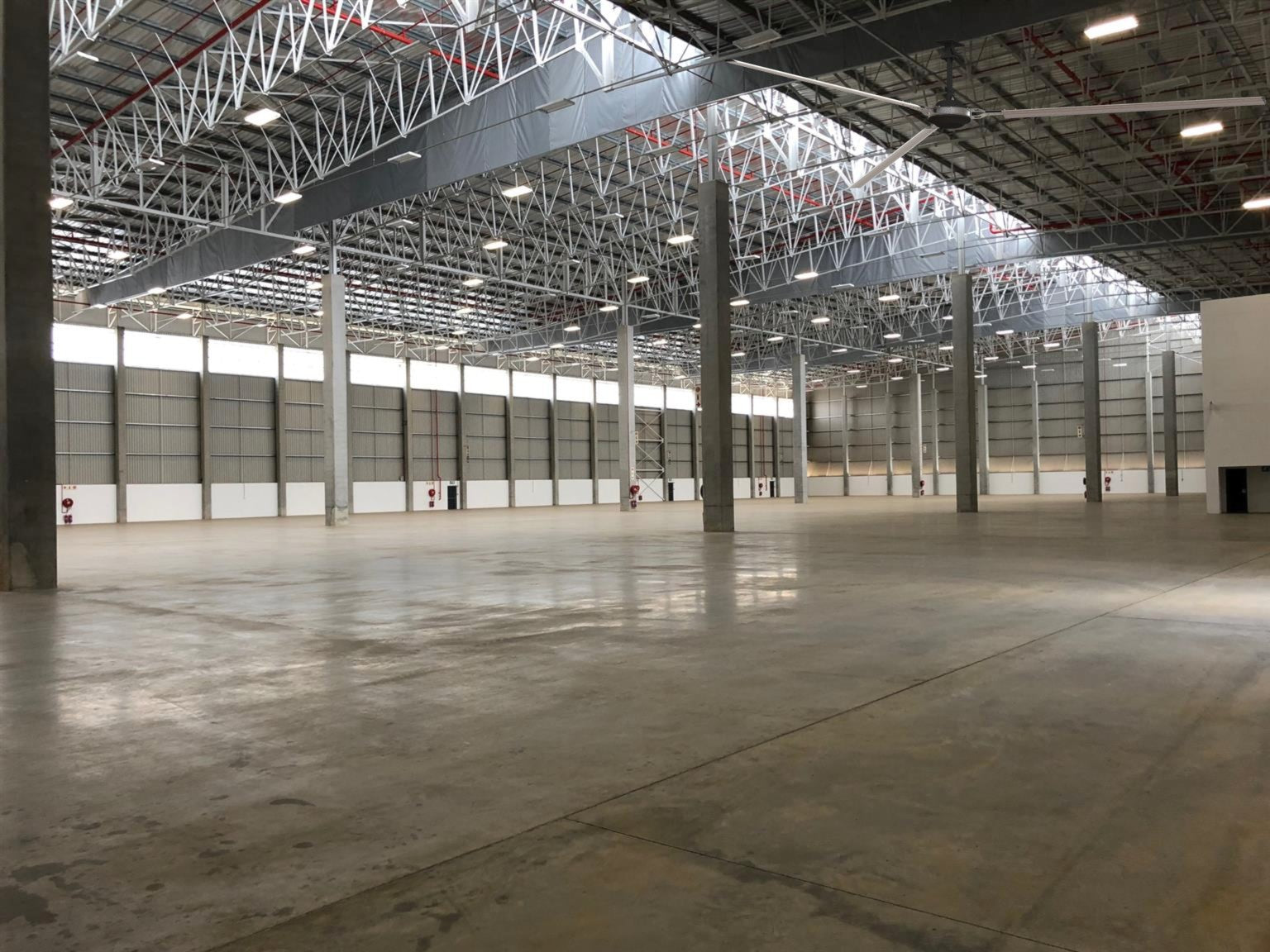

Industrial HVLS Fan Overview

Designed for large industrial and commercial spaces, this HVLS fan delivers powerful airflow with ultra-low noise (≤35 dBA at max speed). Built with three precision 6061-T6 extruded anodized aluminum airfoils for superior durability and aerodynamic efficiency.

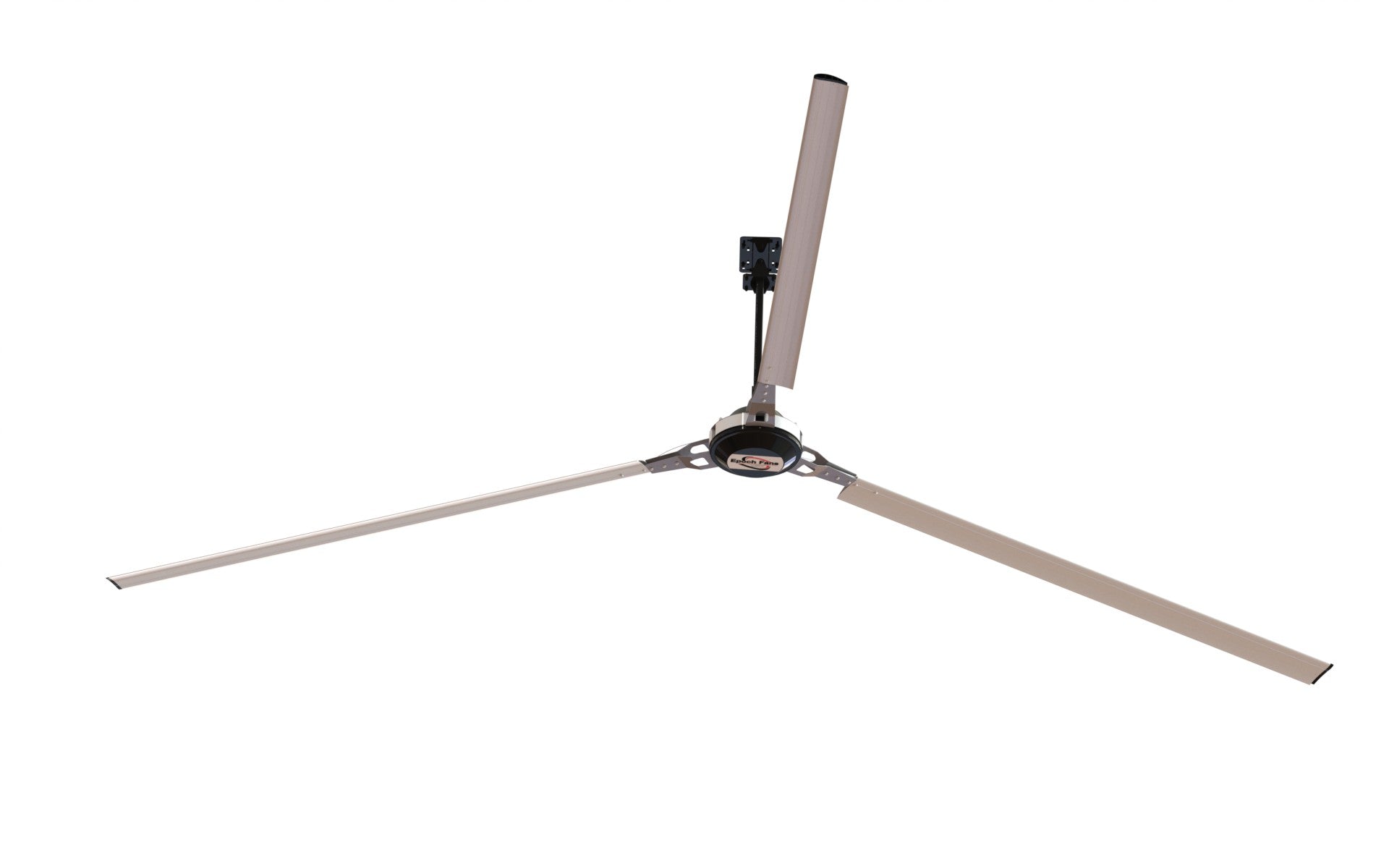

3 Blade HVLS Fan

CORE TECHNOLOGY

PMSM Direct Drive Motor

The Permanent Magnet Synchronous Motor eliminates gearbox requirements, reduces maintenance costs, and maximizes energy efficiency. Featuring Class F insulation, it delivers high torque with silent, vibration-free operation.

SPECIFICATIONS

Key Features

⚙️ Motor

Direct Drive PMSM
High Energy Efficiency
Class F Insulation
1.1 HP (0.8 kW)

🎛 Controller

Power Factor Correction
Single Phase Input
Factory Programmed

🌀 Airfoil

3-Blade Aerodynamic Design
Anodized Aluminum
Precision Engineered
Blade Width: 187 mm

ADVANCED

Advanced Features

🔄 Forward / Reverse

Dual Direction Operation
Optimized for Winter Recirculation

🛡 Safety System

Automotive Grade Hub
Safety Guy Wires
Integrated Safety Mechanism

📜 Certifications

UL 507 Approved
CE Certified
ISO Certified

PERFORMANCE

Performance Benefits

✔ Available from 14 ft to 24 ft (7.3 m)
✔ Airflow up to 3,50,000 CFM
✔ Sound Level < 35 dB
✔ Energy Efficient Performance
✔ Lightweight Design

✔ Direct Drive Technology
✔ 3-Blade Aerodynamic Profile
✔ Forward / Reverse Function
✔ Reduced Maintenance Cost
✔ Industrial-Grade Durability
