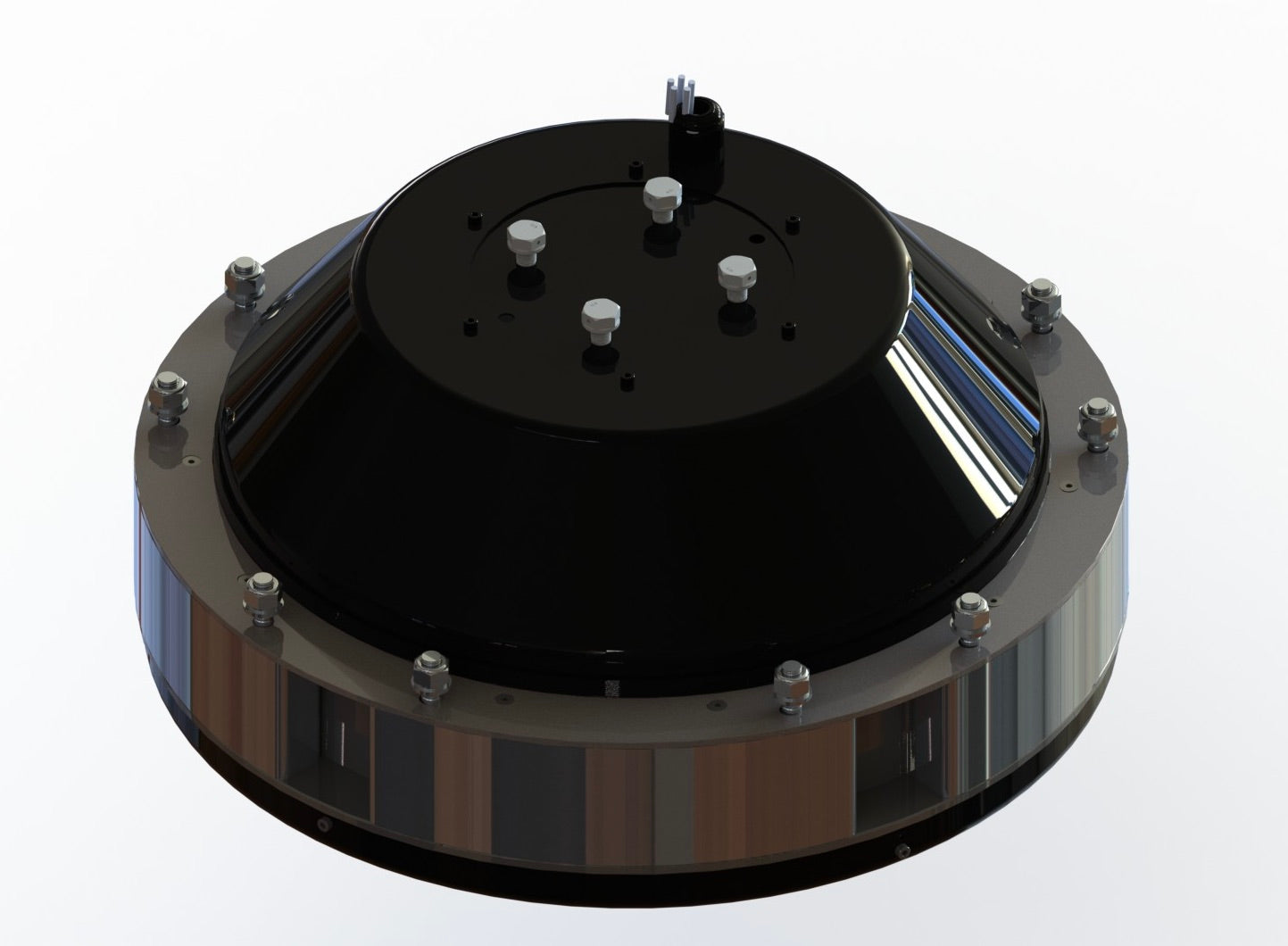

Epoch 3.0 Motor - 170Nm/1.5kW/2.0hp
$3,558.00
Skip to product information
Epoch 3.0 Motor - 170Nm/1.5kW/2.0hp
$3,558.00
⚙ EPOCH MOTOR PLATFORM ⚙
EPOCH 3.0 PLATFORM
PMSM DIRECT DRIVE
Epoch 3.0 Motor — Performance Specifications
Permanent Magnet Brushless Direct-Drive Motor Platform
Motor Performance
| Continuous Torque | 170 Nm |
|---|---|
| Speed Range | Up to 70 RPM |
| Motor Type | Permanent Magnet Brushless Direct-Drive Motor |
| Overall Diameter | 488 mm |
| Weight | 49 kg (108 lbs) |
| Efficiency | > 85% |
| Peak Power | 1500 W |
| Flat Torque Curve Range | Extends to 100 RPM before trailing off (no phase advance / field weakening applied) |
Mounting
| Ceiling Mounting | Square pipe mounts to the top mounting holes for ceiling installation |
|---|---|
| Mounting Hole Pattern | 76.2 mm square, four 3/8″ PEM nuts at the corners; two center holes for cable routing, covered with a protective shroud |
| Blade Compatibility | Platform accommodates 2 to 8 blades; most common configurations are 3, 4, 5, and 6-blade |
Torque-Speed Curve — Across All Epoch Platforms
| Parameter | Epoch 1.0 | Epoch 2.0 | Epoch 3.0 | Epoch 4.0 |
|---|---|---|---|---|
| Peak Power | 1200 W | 1200 W | 1500 W | 1800 W |
| Flat Torque Curve Extends To | 200 RPM | 120 RPM | 100 RPM | 60 RPM |
Curves shown are without any phase advance or field weakening function applied.
OVERVIEW
Motor Description
The Epoch 3.0 is a gearless, permanent magnet brushless direct-drive motor delivering 170 Nm of continuous torque across a speed range of up to 70 RPM. It mounts to the ceiling via a 76.2 mm square hole pattern and is built to take anywhere from 2 to 8 blades, with 3, 4, 5, and 6-blade configurations most common in the field.
Top & Side View
Mounting holes on the top follow a 76.2 mm square pattern, allowing a square pipe to be used for ceiling installation.
Blade Flexibility
The Epoch platform is engineered to accommodate any blade count from 2 to 8 blades, giving flexibility across 3, 4, 5, and 6-blade fan configurations.
For inquiries, OEM drawings, or torque-speed data on other Epoch platforms — info@falcoemotors.com
