EP14F3B-1.0
$3,287.00
⚙ EPOCH HVLS FANS — TECHNICAL SPECIFICATIONS ⚙
EPOCH 1.0 SERIES

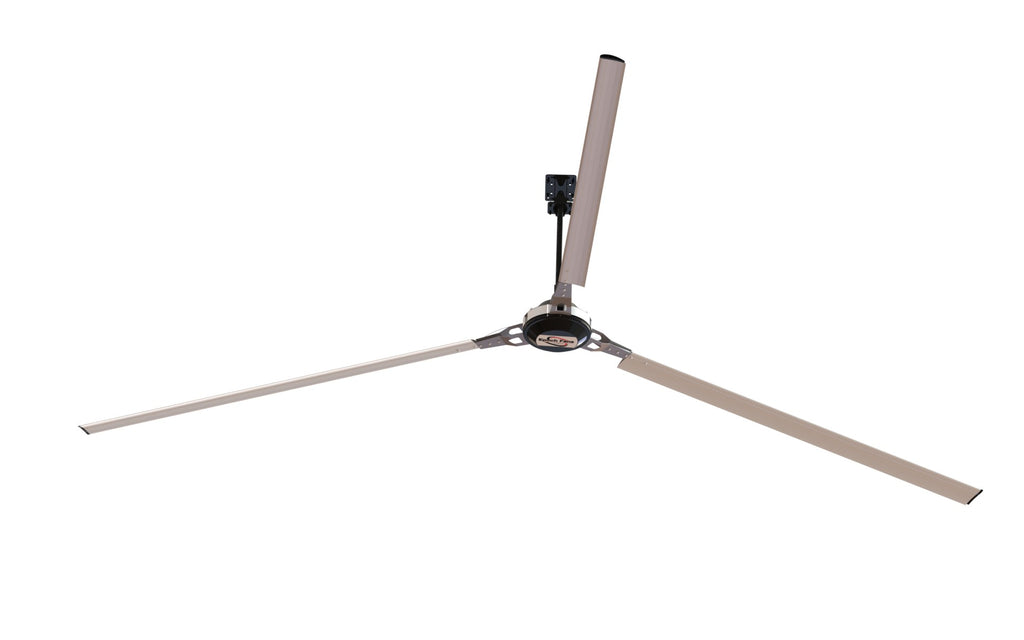

Epoch 14-ft | 3-Blades | 118 RPM HVLS Fan
Epoch 1.0 Motor & Controller — 50 Nm / 0.6 kW / 0.8 hp
Technical Specifications
| Fan Diameter | 14 ft (4.3 m) |
|---|---|
| Number of Blades | 3 |
| Blade Profile | Airfoil Design (Falcon-inspired + aeronautics) |
| Blade Material | Anodized 6061-T6 Aluminum |
| Coverage (max) | 7,500 sq.ft. (697 m²) |
| Air Flow (CFM) | 240,000 – 270,000 CFM |
| Sound Level | < 35 dB |
| Approx. Fan Weight | 66 kg / 145 lbs |
Motor & Electrical
| Motor Platform | Epoch 1.0 (Falco) – Direct Drive PMSM |
|---|---|
| Technology | UPF (Unity Power Factor) + PMSM |
| Max Speed | 118 RPM |
| Power @ Max RPM | 600 W (0.8 hp) |
| Standard Power Input | 200–277V AC, 1~, 50/60 Hz |
Safety & Certifications
| Safety System |
|
|---|---|
| Warranty | Available on request |
OVERVIEW
Product Description
Epoch HVLS Fans with PMSM motor & direct drive meet international standards for quality, safety, and performance. The advanced airfoil blade design combines modern aeronautics with falcon-wing engineering to create dynamic, high-efficiency airflow at every speed.
Box Contents
- ✔ Epoch 1.0 PMSM Motor
- ✔ 3 Blades + Accessories
- ✔ Standard Controller
- ✔ Fan Mounting Kit
- ✔ 25 m Cable
- ✔ Safety Guy Wires
Mounting Configuration
Mounting hole pattern: 76.2 mm square with four 3/8″ PEM nuts at the corners. Two central holes for cable routing covered with protective shroud.
Blade Tech Note
Blade Ends: Nylon Winglets
Material: 6061-T6 Anodized Aluminum
Width: 187 mm · Thickness: 2 mm
Struts: Clear Zinc / High Tensile Steel
For inquiries, OEM drawings, or installation guide — Contact us
