⚙ EPOCH HVLS FANS — TECHNICAL SPECIFICATIONS ⚙
EPOCH POLE-MOUNTED SERIES
3-BLADE

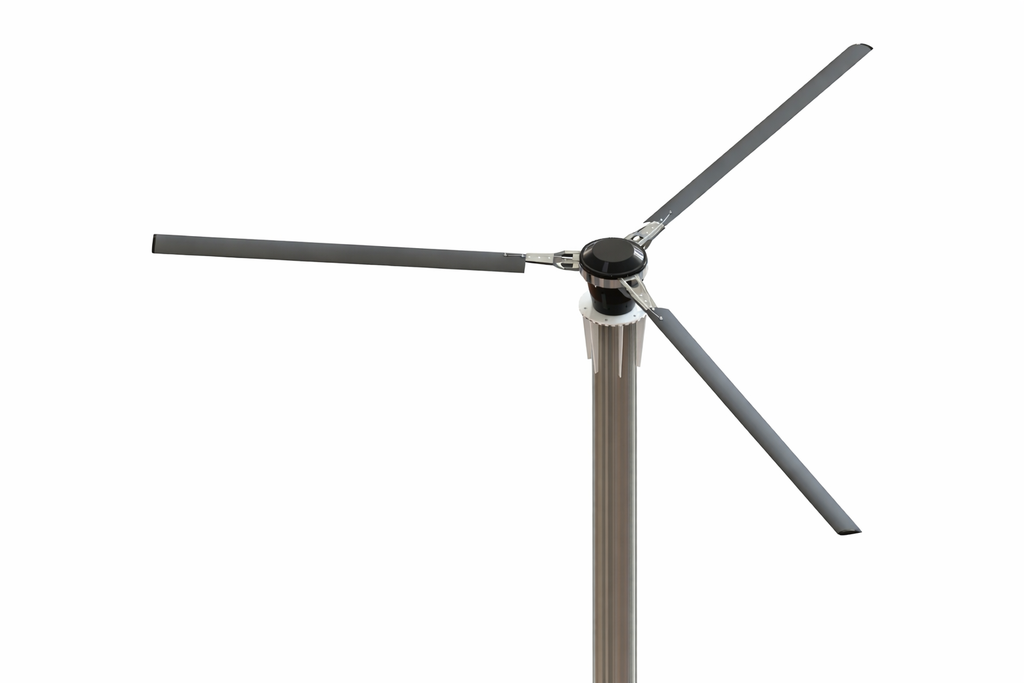

Epoch Pole-Mounted HVLS Fan | 3-Blade | 14 Ft – 24 Ft
Direct-Drive PMSM Motor & Controller — Epoch 1.0 (14–16 Ft) & Epoch 2.0 (18–24 Ft) Platforms
Note: This listing covers the fan head, blades, motor, and controller only. The mounting pole is sold separately and is not included — pole height and specification are selected based on your site's ceiling height and installation requirements.
Technical Specifications — Common to All Confirmed Sizes
| Number of Blades | 3 |
|---|---|
| Blade Profile | Airfoil Design (Falcon-inspired + aeronautics) |
| Blade Material | Anodized 6061-T6 Aluminum |
| Blade Struts | Clear Zinc / High Tensile Steel |
| Blade Width | 187 mm |
| Blade Thickness | 2 mm |
| Blade End | Nylon Winglets |
| Technology | UPF (Unity Power Factor Correction) + PMSM (Permanent Magnet Synchronous Motor) |
| Standard Power Input | 200–277V AC, 1 Phase, 50/60 Hz |
| Sound Level | < 35 dB |
| Mounting Hole Pattern | 76.2 mm square, four 3/8″ PEM nuts at corners; two center holes for cable routing, covered with protective shroud (confirmed for 14/16/18 Ft; not restated in the 20/24 Ft sheets — verify it's unchanged before listing as common to those sizes too) |
Size-Specific Specifications
| Parameter | 8 Ft | 10 Ft | 12 Ft | 14 Ft | 16 Ft | 18 Ft | 20 Ft | 22 Ft | 24 Ft |
|---|---|---|---|---|---|---|---|---|---|
| Motor Platform | TBD | TBD | TBD | Epoch 1.0 | Epoch 1.0 | Epoch 2.0 | Epoch 2.0 | TBD | Epoch 2.0 |
| Fan Diameter | — | — | — | 4.3 m | 4.9 m | 5.5 m | 6.1 m | — | 7.3 m |
| Max Speed | — | — | — | 118 RPM | 91 RPM | 87 RPM | 81 RPM | — | 63 RPM |
| Power @ Max RPM | — | — | — | 600 W (0.8 hp) | 600 W (0.8 hp) | 800 W (1.1 hp) | 800 W (1.1 hp) | — | 800 W (1.1 hp) |
| Torque @ Max RPM | — | — | — | 50 Nm | 50 Nm | 90 Nm | 90 Nm | — | 90 Nm |
| Coverage (max) | — | — | — | 7,500 sq.ft | 9,600 sq.ft | 12,600 sq.ft | 15,400 sq.ft | — | 17,000 sq.ft |
| Coverage Radius | — | — | — | not stated | 29 ft | 31 ft | 35 ft | — | 40 ft |
| Recommended Fan Spacing | — | — | — | not stated | 48 ft | 54 ft | 66 ft | — | 72 ft |
| Min. Distance from Wall | — | — | — | not stated | 24 ft | 27 ft | 30 ft | — | 36 ft |
| Air Flow (CFM) | — | — | — | 240K–270K | 240K–270K | 270K–300K | 270K–300K | — | 300K–330K |
| Approx. Fan Weight | — | — | — | 66 kg | 69 kg | 71 kg | 73 kg | — | 78 kg |
| Control Options | — | — | — | not stated | not stated | Wireless App, Touch LCD, Analog, Analog+LCD | Wireless App, Touch LCD, Analog, Analog+LCD | — | Wireless App, Touch LCD, Analog, Analog+LCD |
Safety & Certifications
| Safety System |
|
|---|---|
| Warranty | Available on request |
OVERVIEW
Product Description

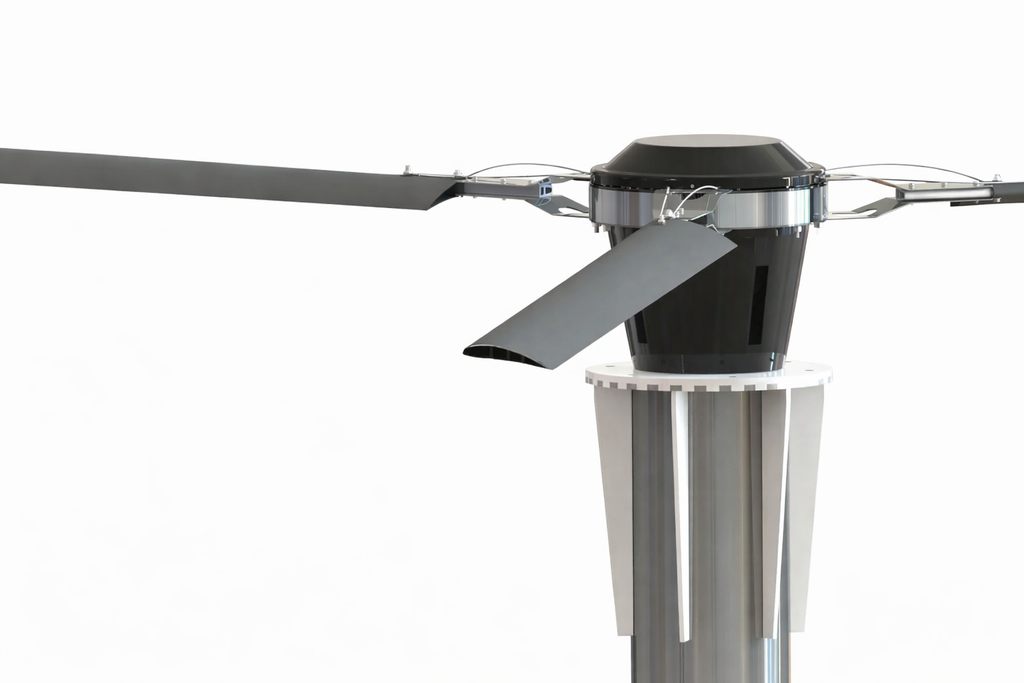

The Epoch Pole-Mounted HVLS Fan (3-Blade) is a gearless, direct-drive PMSM industrial fan spanning 14 Ft to 24 Ft. Sizes 14–16 Ft run on the Epoch 1.0 motor platform; 18–24 Ft step up to the higher-torque Epoch 2.0 platform for larger coverage areas. Every confirmed size shares the same airfoil-profile aluminum blade design and safety-certified build.
Box Contents
- ✔ Epoch PMSM Motor (1.0 or 2.0 platform, per size)
- ✔ 3 Blades + Accessories
- ✔ Standard Controller
- ✔ Fan Mounting Kit
- ✔ 25 m Cable
- ✔ Safety Guy Wires
- ✘ Mounting Pole (sold separately)
Pole Mounting
This fan is supplied as a pole-mounted unit; the pole itself is not included and is specified separately based on your ceiling height and site conditions. Speak to our engineers to select the correct pole length for your installation.
Blade Tech Note
Blade Ends: Nylon Winglets
Material: 6061-T6 Anodized Aluminum
Width: 187 mm · Thickness: 2 mm
Struts: Clear Zinc / High Tensile Steel
For inquiries, OEM drawings, or an installation guide — Contact us
