Epoch 2.0 – 16 ft HVLS Fan Specifications
EP16F5B-2.0
$3,630.00
⚙ EPOCH HVLS FANS — TECHNICAL SPECIFICATIONS ⚙
EPOCH 2.0 SERIES

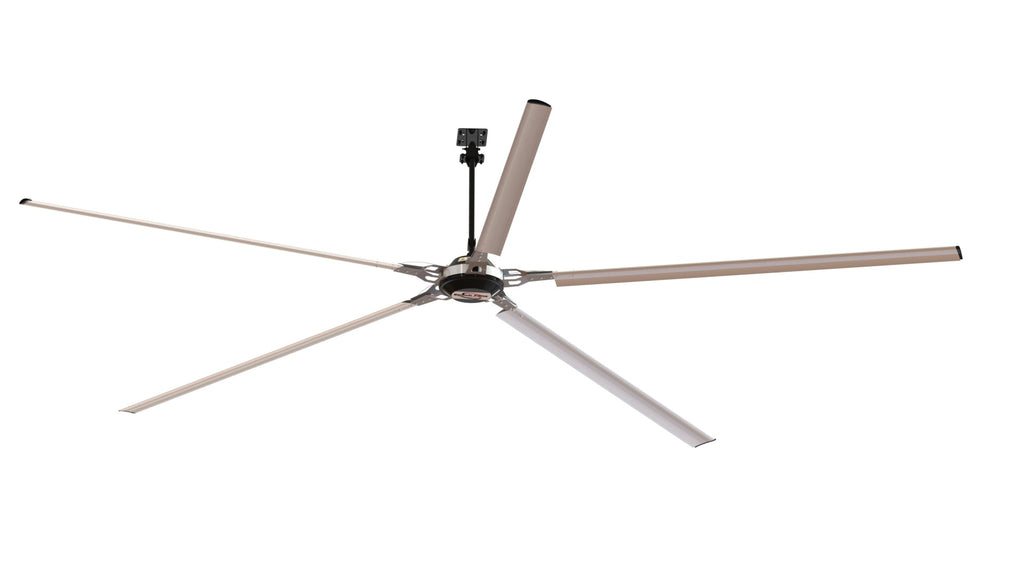

Epoch 16-ft | 5-Blades | 95 RPM HVLS Fan
Epoch 2.0 Motor & Controller — 140 Nm / 1.1 kW / 1.5 hp
⚙ Epoch 2.0 – 16 ft (4.9 m) 5-Blade Specifications
| Fan Diameter | 16 ft (4.9 m) |
|---|---|
| Number of Blades | 5 |
| Blade Profile | Aerodynamic Airfoil Design |
| Blade Material | Anodized 6061-T6 Aluminum |
| Blade Struts | Clear Zinc / High Tensile Steel |
| Blade Width / Thickness | 187 mm / 2 mm |
| Blade End Winglets | Nylon |
| Coverage / Radius | 12,000 sq.ft. (1,114 m²) · Radius 45 ft |
| Space Between Fans / From Wall | 90 ft / 24 ft (min) |
| Air Flow (CFM) | 400,000 – 450,000 CFM |
| Sound Level | < 35 dB (Ultra-Quiet) |
| Fan Weight | 72 kg |
🔌 Motor & Electrical – Epoch 2.0
| Motor Platform | Epoch 2.0 – Direct Drive PMSM, Gearless |
|---|---|
| Technology | UPF (Unity Power Factor) + PMSM |
| Max Speed / Power / Torque | 95 RPM · 1,100 W (1.5 hp) · 140 Nm |
| Input Voltage | 200–277V AC, 1 Phase, 50/60 Hz |
| Current | 4.5 A |
| Power Factor Correction | Yes (UPF Integrated) |
| Operating Unit Options | Wireless / Apps · Touch LCD (Modbus) · Analog · Analog + LCD |
🛡 Safety & Engineering
| Safety System |
• Safety guy wires for motor + each blade • Automotive-grade hub & reinforced guy wires • Designed for UL507 & UL1004 safety standards |
|---|---|
| Warranty | 15 Years Mechanical · 7 Years Electrical |
📦 What's in the Box
| Motor | Epoch 2.0 PMSM Motor |
|---|---|
| Blades | 5 Blades with Accessories |
| Controller | Standard Controller |
| Mounting | Fan Mounting Kit |
| Cable | 25 m Cable |
| Safety | Safety Guy Wires |
