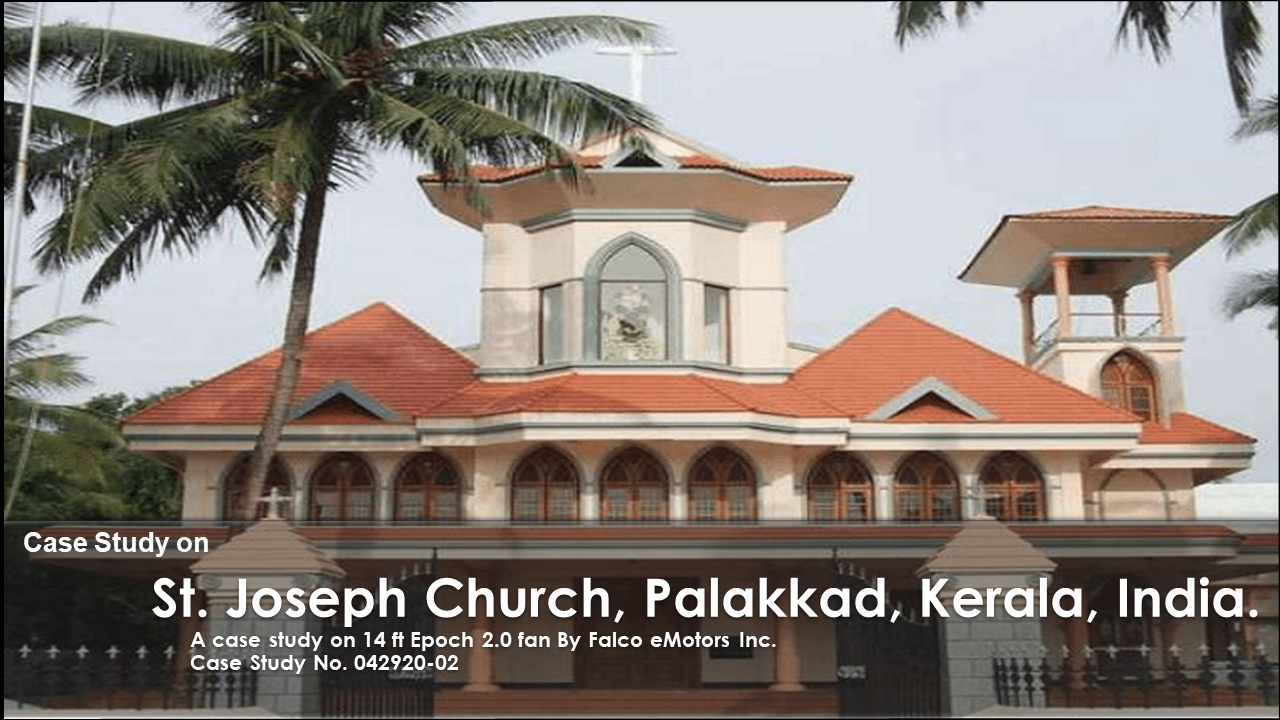

St. Joseph Church, Palakkad, India
A Case Study : Epoch HVLS 14-ft Fan By Falco eMotors Inc.
Report No. 042920-02
Report No. 042920-02
233%
Saving on Electricity
2X
Higher Airflow
<35 dBA
Lowest Noise
Key Facts
- Direct Drive PMSM Motor
- Lowest Weight HVLS Fan
- Active Power Factor Corrected
- Industry: Institutional
- Location: India
- Product: Epoch 14-ft HVLS Fan
Problem
- St. Joseph Church is a busy religious place with large gatherings every Sunday.
- Events like weddings, engagements and celebrations happen frequently.
- During summer the church becomes hot due to poor air circulation.
- Visitors experience discomfort during large gatherings.
Solution
- Installed Epoch 14-ft HVLS Fan.
- Coverage Area : 8000 sq.ft
- Speed : 120 RPM
- Peak Power : 1.1 kW / 1.5 hp
Site Survey
A detailed site survey was conducted before recommending the HVLS fan installation. Measurements confirmed that a 14-ft fan would provide optimal airflow for the church hall.
- Total Area : 35 ft × 80 ft (2800 sq.ft)
- Ceiling Height : 20–24 ft
- Recommended Fan Size : 14-ft
Test Reports
Power Consumption Report
Power consumption was measured at speeds of 80, 90, 100, 110 and 120 RPM. The recorded power values were 330 W, 425 W, 575 W, 790 W and 940 W respectively.
Input Current Report
Input current measurements ranged between 1.4 A and 3.9 A while the supply voltage varied between 230V and 240V.
Air Flow Report
Airflow ranged from 530 ft/min near the center to 310 ft/min at the farthest measurement point.
Finished Installation
This is the completed installation of the Epoch 14-ft HVLS Fan at St. Joseph Church.
