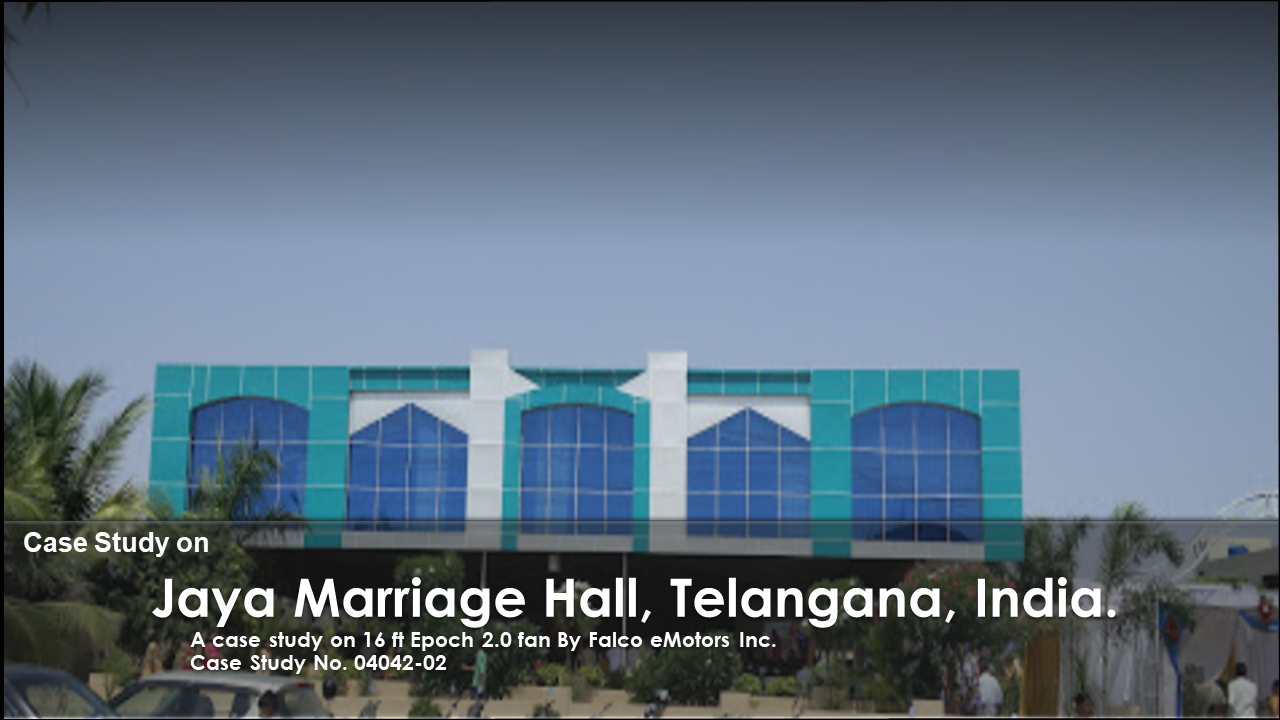

Jaya Marriage Hall, India
A Case Study : Epoch 2.0 HVLS 16-ft Fan By Falco eMotors Inc.
Report No. 040420-02
Report No. 040420-02
117%
Saving on Electricity
2X
Higher Airflow
<35 dBA
Lowest Noise
Key Facts
- Direct Drive PMSM Motor
- Lowest Weight
- Active Power Factor Corrected
- Industry: Industrial
- Location: India
- Product: Epoch 16-ft HVLS Fan
Problem
- Jaya Marriage Hall hosts weddings, corporate meetings, and social events.
- Located in the city center, airflow was poor during summer.
- The large hall required strong air circulation for guest comfort.
Solution
- Installed 03 Epoch 2.0 16-ft HVLS Fans.
- Coverage Area : 12,000 Sq Ft
- Speed : 95 RPM
- Peak Power : 1.1 kW
Site Survey
A site survey was conducted before installation to determine the optimal fan size.
- Total Area : 250 ft × 85 ft = 21,250 sq ft
- Ceiling Height : 24–27 ft
- Recommended Fan : 16 ft HVLS Fan
Test Reports
Power Consumption Report
Power consumption was measured at 55, 65, 75, 85 and 95 RPM showing efficient performance and optimized energy usage.
Input Current Report
Input current varied between 1.9A and 4.7A with voltage supply between 230–240V.
Air Flow Report
Airflow was measured up to 36 ft from the fan center ensuring adequate air circulation across the hall.
Finished Installation
This is the completed installation of the Epoch 16-ft HVLS Fans.
