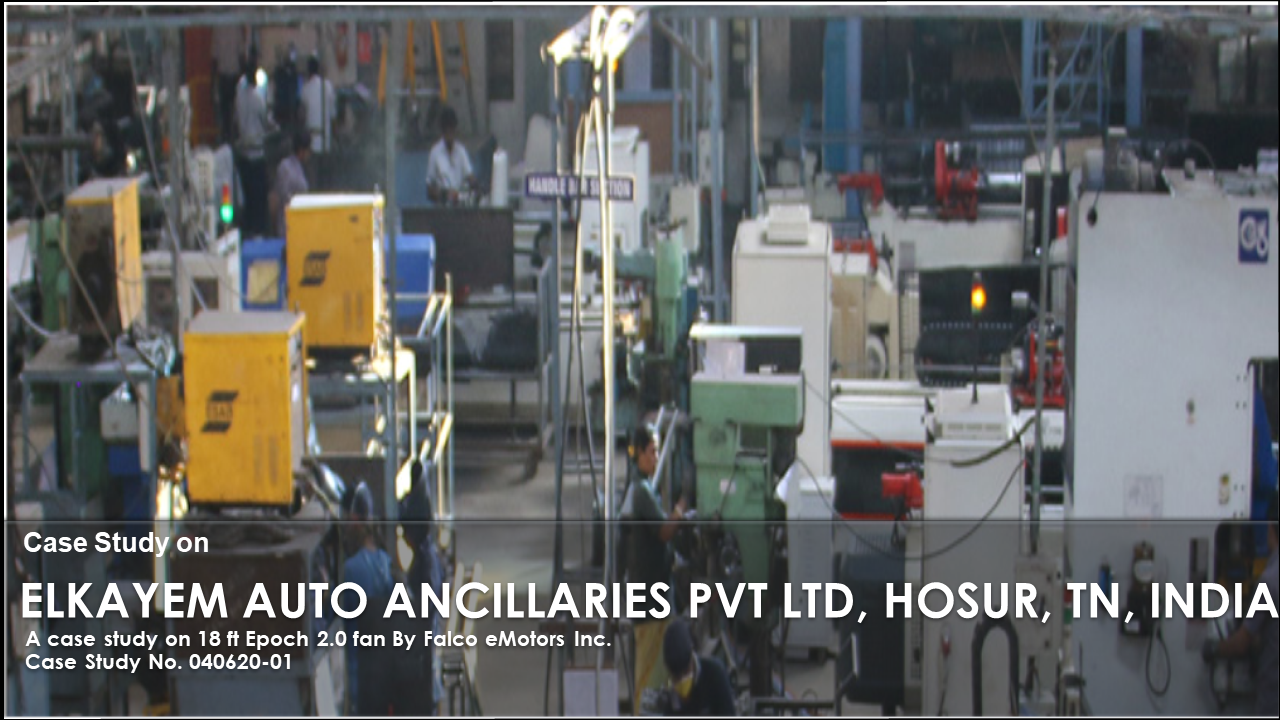

Elkayem Auto Ancillaries Pvt Ltd, India.

Elkayem Auto Ancillaries Pvt Ltd, Hosur, Tamil Nadu, India

A Case Study : Epoch HVLS 18-ft Fan By Falco eMotors Inc.
Report No. 040220-01

124%

Saving on Electricity

2 X

Get 2 x Airflow

<35 dBA

Lowest sound in the World

Key Facts

Benefits

Direct Drive PMSM Motor
Lowest Weight
Active Power Factor Corrected

Industry

Industrial

Location

India

Product

Epoch 18-ft 5-Blades 75 RPM HVLS Fan with Epoch 2.0 Motor and Controller – 140Nm / 1.1kW / 1.5 hp

Problem

Elkayem Auto Ancillaries has become a well-known industrial equipment shop in Hosur with processing, forging, machining and assembly facilities. The facility itself has low insulation.
Hot working conditions in summer and cold conditions in winter reduce employee comfort levels and affect productivity.
Heat, moisture and stagnant air are frequently encountered problems in the production shop and negatively impact working conditions.
The company decided to install an industrial HVLS fan to provide relief in these conditions.

Solution

Epoch 2.0 18-ft HVLS fan installed with the following specifications:

Motor : Epoch 2.0
Coverage Area : 15,000 Sq. Ft. (1,393 Sq. m)
Speed : 75 RPM
Peak Power : 1.1 kW / 1.5 hp

The Epoch 2.0 18-ft diameter HVLS fan provides powerful airflow and high airflow efficiency across the facility.

Site Survey

A site survey is mandatory before any HVLS fan recommendation. The survey revealed the following dimensions:

Total Area : 150 ft × 60 ft = 9,000 Sq. Ft.
Floor to Ceiling Distance : 25 – 28 ft
Rule of thumb : Distance / 1.5 ≈ fan diameter
Selected Fan Size : 18-ft HVLS fan

Test Reports

Three test reports are collected for each fan installation.

Power Consumption Report

Power consumption captures both real and apparent power. Epoch HVLS fans feature active power factor correction and near-unity power factor. Power measured at 35, 45, 55, 65 and 75 RPM was 280 W, 330 W, 499 W, 877 W and 1020 W respectively.

Input Current Report

Input current measured at 35, 45, 55, 65 and 75 RPM was 0.42 A, 1.35 A, 2.4 A, 3.96 A and 4.7 A respectively. Input voltage during testing varied between 230 V and 240 V.

Air Flow Report

Airflow was measured from the center of the fan at every 3-ft distance up to 27-ft. Recorded airflow values were 216, 236, 452, 551, 689, 590, 452 and 346 ft/min.
