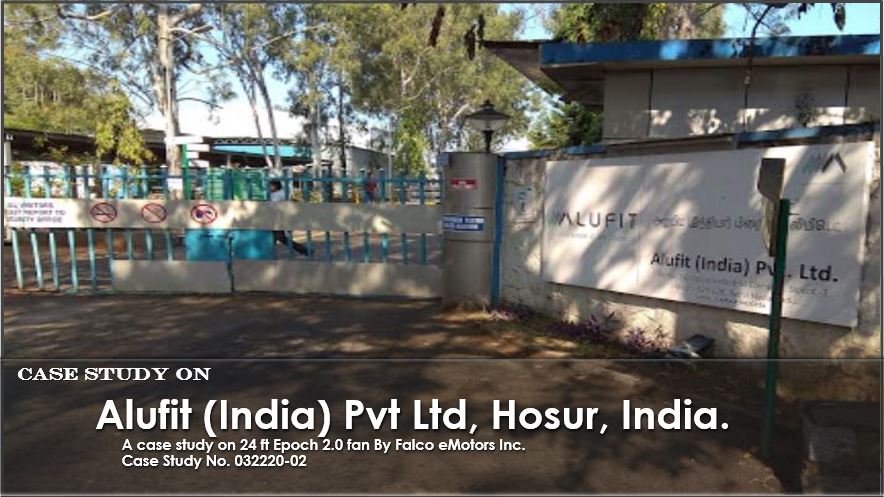

Alufit India Pvt. Ltd., India

A Case Study : Epoch HVLS 24-ft Fan By Falco EMotors Inc.
Report No. 040220-02

155%

Saving on Electricity

2 X

Get 2 x Airflow

<35 dBA

Lowest sound in the World

Key Facts

Benefits

Direct Drive PMSM Motor
Lowest Weight
Active Power Factor Corrected

Industry

Industrial

Location

India

Product

Epoch 24-ft 5-Blades 52 RPM HVLS Fan with Epoch 2.0 Motor and Controller - 90Nm / 1.5kW / 2.0 hp

Problem

ALUFIT manufactures products including curtain walls, glazing systems, aluminum composite cladding, louvers, skylights, canopies, doors and window frames.
Temperatures in Tamil Nadu are extremely high during summer, causing severe ventilation and heat stress problems inside the shop.
Shop technicians experience discomfort due to heat stress and machinery performance is affected by high ambient temperatures.
The shop lacks proper air ventilation and HVAC systems are costly and inefficient for very large industrial spaces.

Solution

Installed 2 × Epoch 2.0 24-ft HVLS Fans with the following specifications:

Motor : Epoch 2.0
Coverage Area : 25,000 Sq. Ft. (2,323 Sq. m)
Speed : 52 RPM
Peak Power : 1.1 kW / 1.5 hp

The 24-ft Epoch HVLS fans provide excellent airflow efficiency and large-area cooling.

Site Survey

A site survey is mandatory before any HVLS fan recommendation. The survey revealed the following dimensions:

Total Area : 60 m × 35 ft = 2,100 Sq. m
Floor to Ceiling Distance : 35 – 40 ft
Fan size selected : 24-ft HVLS fan

Test Reports

Power Consumption Report

Power consumption captures both real and apparent power. Epoch HVLS fans feature active power factor correction ensuring both values are nearly identical. Power measured at 18, 28, 38, and 48 RPM is 560 W, 690 W, 810 W and 960 W respectively.

Input Current Report

Input current measured at 18, 28, 38 and 48 RPM was 1.9 A, 2.6 A, 3.8 A and 4.6 A respectively. Input voltage during testing varied from 230 to 240 V.

Air Flow Report

Airflow measured from the fan center up to 30-ft distance. Values recorded were 145, 220, 349, 417, 503, 521, 454, 433, 372 and 259 ft/min at distances of 3,6,9,12,15,18,21,24,27 and 30 ft respectively.
