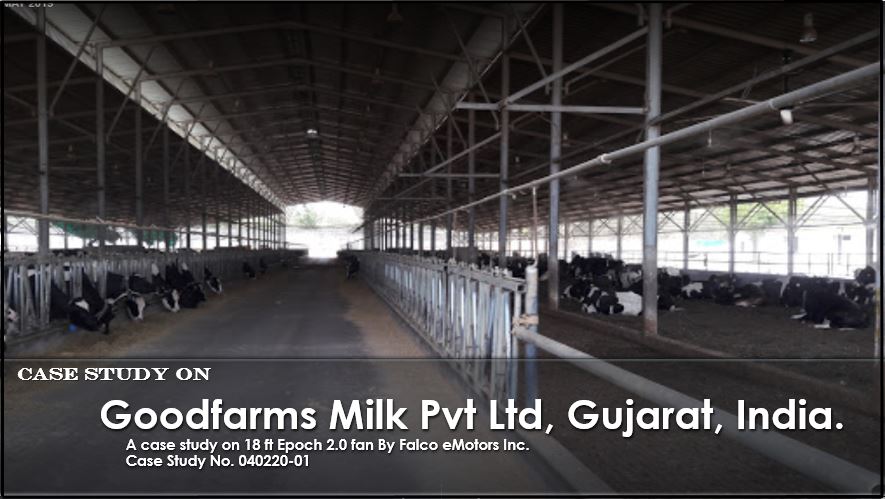

Goodfarm Milks Pvt Ltd, Gujarat, India
A Case Study : Epoch HVLS 18-ft Fan By Falco eMotors Inc.
Report No. 040220-01
Report No. 040220-01
124%
Saving on Electricity
2X
Higher Airflow
<35 dBA
Lowest Noise
Key Facts
- Direct Drive PMSM Motor
- Lowest Weight HVLS Fan
- Active Power Factor Corrected
- Industry: Agriculture
- Location: India
- Product: Epoch 18-ft HVLS Fan
Problem
- Goodfarm Milk Pvt Ltd is one of the biggest cow farms in India.
- During summer cows face heat stress.
- No proper ventilation inside the shed.
- Milk production decreases causing financial loss.
Solution
- Installed Epoch 2.0 18-ft HVLS Fan.
- Coverage Area : 15000 sq.ft
- Speed : 75 RPM
- Peak Power : 1.1 kW
Site Survey
A site survey was conducted before recommending the HVLS fan. Measurements confirmed that an 18-ft fan would provide optimal airflow coverage.
- Total Area : 118m × 44m (5192 sq.m)
- Ceiling Height : 7–9 meters
- Recommended Fan Size : 18-ft
Test Reports
Power Consumption Report
Power consumption was measured at different speeds to evaluate efficiency and real power usage.
Input Current Report
Input current varied between 1.37A and 4.75A with supply voltage between 230–240V.
Air Flow Report
Airflow measurements confirmed strong circulation up to 30ft distance from the fan center.
Finished Installation
This is the final installation of the Epoch 18-ft HVLS Fan.
