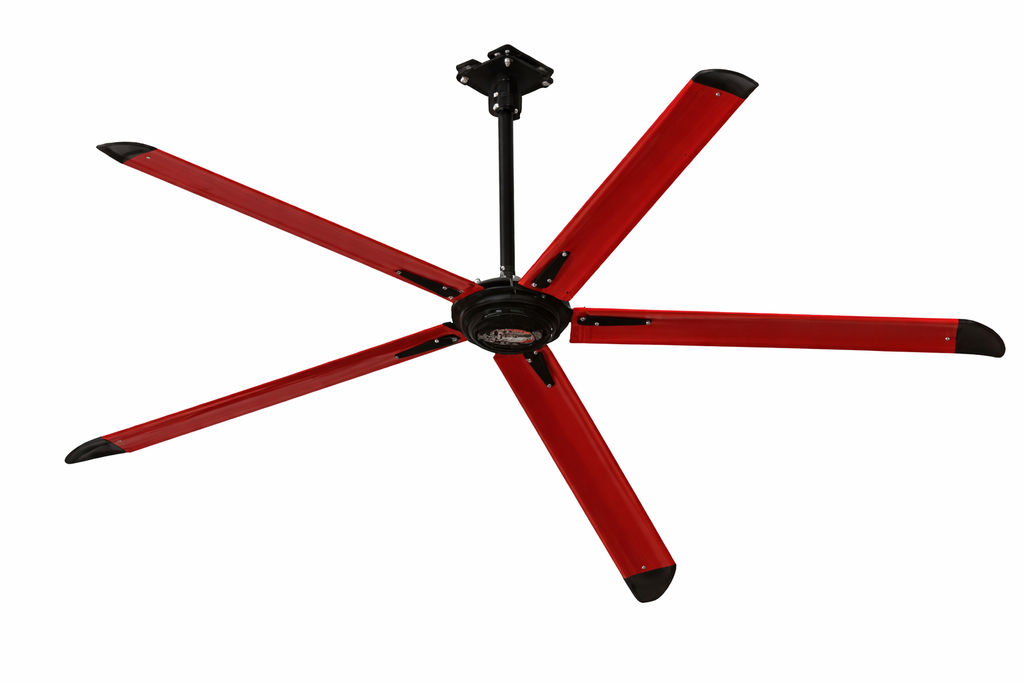

HX14F5B
$2,715.00
⚙ HX SERIES — TECHNICAL SPECIFICATIONS ⚙
14 FT COMMERCIAL
14-ft (4.3m) | 5-Blade | HX Motor & Controller Platform
Advanced HVLS Commercial Fan — Engineered for Superior Airflow & Energy Efficiency
Technical Specifications
| Parameter | Specifications |
|---|---|
| Category | Fan |
| Type | HVLS COMMERCIAL |
| Technology | 5-Phase PMSM |
| Sweep Size | 4300 mm (14 ft) |
| Number of Blades | 5 |
| Max Coverage | 4,000 sq.ft. (372 sq.m) |
| Air Flow (Max) | 290,000 CFM |
| Sound Level | < 50 dB |
Motor & Electrical Specifications
| Parameter | Specifications |
|---|---|
| Motor Type | 3-Phase PMSM, Gearless, Brushless |
| Power Rating | < 0.4 KW (400W) |
| Max Speed | 60 RPM |
| Torque | 30 Nm |
| Input Voltage | 180-240 VAC, Single Phase |
| Power Factor | 0.95 |
Mechanical & Blade Specifications
| Parameter | Specifications |
|---|---|
| Blade Profile | Airfoil Design |
| Blade Material | Anodized 6061-T6 Aluminum |
| Fan Weight | 29.5 kg / 65 lbs |
OVERVIEW
Product Overview & Key Features

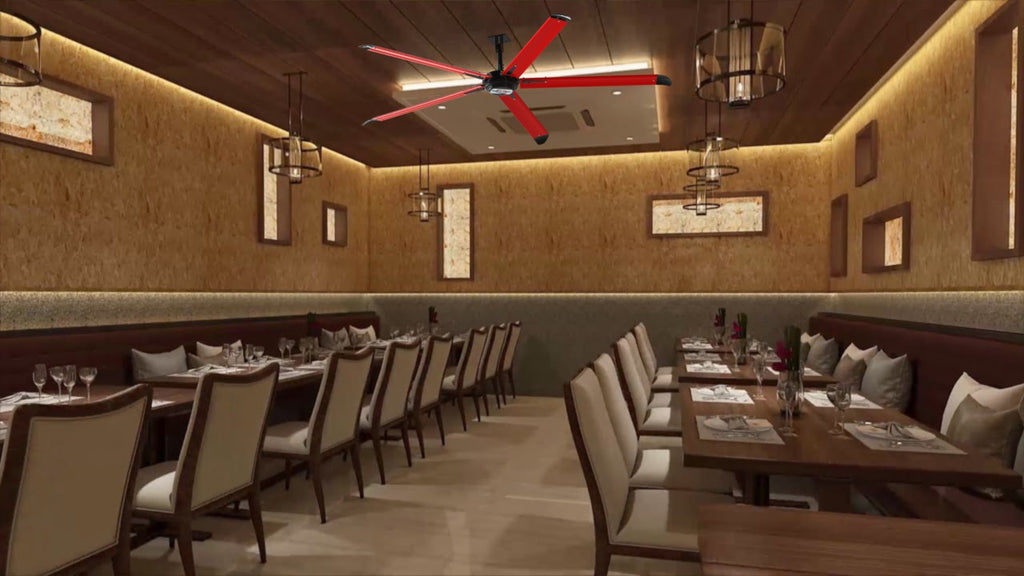

Introducing the HX Series: Ranging from 8 to 16 ft., the HX Fans use revolutionary 3-Phase PMSM technology. The gearless direct-drive motor provides quiet, powerful, and energy-efficient airflow ideal for commercial spaces.
Key Advantages
- ✔ Gearless 3-Phase PMS Motor: High torque, low energy (<400W), maintenance-free and silent.
- ✔ 5-Blade Aerodynamic Design: Inspired by falcon wings for maximum airflow and safety.
- ✔ Blade Technology: Reduces drag, improves airflow efficiency, and lowers power consumption.
Benefits
- ✔ Reverse circulation capability
- ✔ Improves worker productivity and comfort
- ✔ Lowest weight and sound in its class
- ✔ Maintenance-free operation
- ✔ Tremendous air movement
- ✔ Huge power savings
- ✔ Decreases surrounding temperature by 4-7°F
