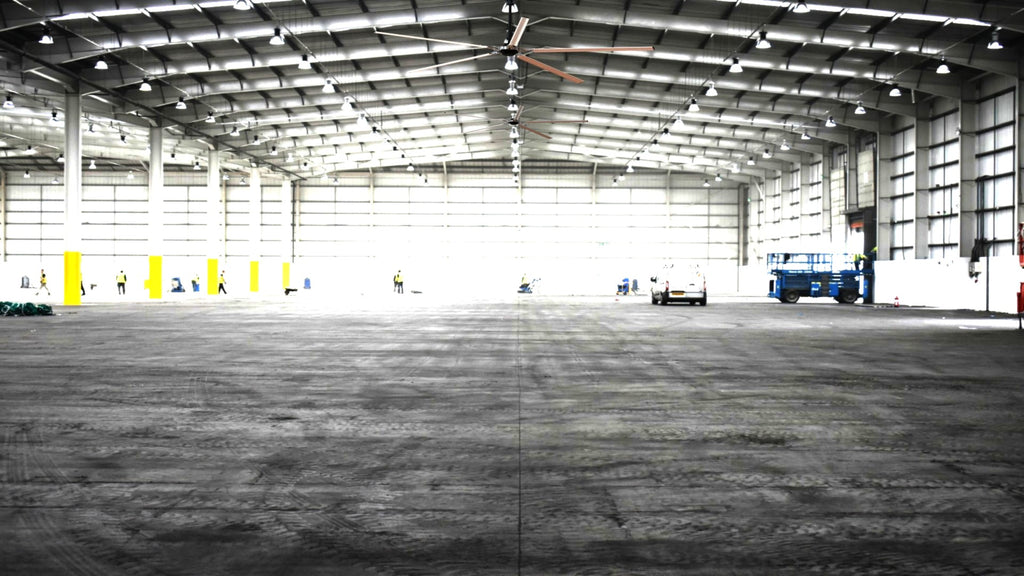

EP08F5B-2.0
Silver
$3,344.00
Skip to product information
Epoch – 8 ft HVLS Fan Specifications
EP08F5B-2.0
$3,344.00
⚙ EPOCH HVLS FANS — TECHNICAL SPECIFICATIONS ⚙
EPOCH 1.0 / 2.0 SERIES
Epoch 8-ft | 5-Blades | 190 RPM HVLS Fan
Epoch 1.0 / Epoch 2.0 Motor & Controller — 50 Nm / 1.1 kW / 1.5 hp · 4 – 5 m Mounting Height
⚙ Epoch – 8 ft (2.4 m) 5-Blade Specifications
| Fan Diameter | 8 ft (2.4 m) |
|---|---|
| Number of Blades | 5 |
| Blade Profile | Aerodynamic Airfoil Design |
| Blade Material | Anodized 6061-T6 Aluminum |
| Blade Struts | Clear Zinc / High Tensile Steel |
| Blade Width / Thickness | 187 mm / 2 mm |
| Blade End Winglets | Reinforced Nylon |
| Coverage / Radius | 5,000 sq.ft. (464 m²) · Radius 30 ft |
| Space Between Fans / From Wall | 60 ft / 12 ft (min) |
| Air Flow (CFM) | 350,000 – 400,000 CFM |
| Sound Level | < 35 dB |
| Fan Weight | 52 kg / 114 lbs |
| Height From Floor (Recommended) | 4 – 5 m |
🔌 Motor & Electrical
| Motor Platform | Epoch 1.0 / Epoch 2.0 – Direct Drive PMSM, Gearless |
|---|---|
| Technology | UPF (Unity Power Factor) + PMSM |
| Max Speed / Power / Torque | 190 RPM · 1,100 W (1.5 hp) · 50 Nm |
| Input Voltage | 200–277V AC, 1 Phase, 50/60 Hz |
| Current | 4.5 A |
| Power Factor Correction | Yes (UPF Integrated) |
| Operating Unit Options | Wireless / Apps · Touch LCD (Modbus) · Analog · Analog + LCD |
🛡 Safety & Engineering
| Safety System |
• Safety guy wires for motor + each blade • Automotive-grade hub & reinforced guy wires • Designed for UL507 & UL1004 safety standards |
|---|---|
| Warranty | 15 Years Mechanical · 7 Years Electrical |
📦 What's in the Box
| Motor | Epoch 2.0 PMSM Motor |
|---|---|
| Blades | 5 Blades with Accessories |
| Controller | Standard Controller |
| Mounting | Fan Mounting Kit |
| Cable | 25 m Cable |
| Safety | Safety Guy Wires |
📬 For detailed specifications, OEM drawings, bulk pricing, or installation support:
