HX06F5B
$2,601.00

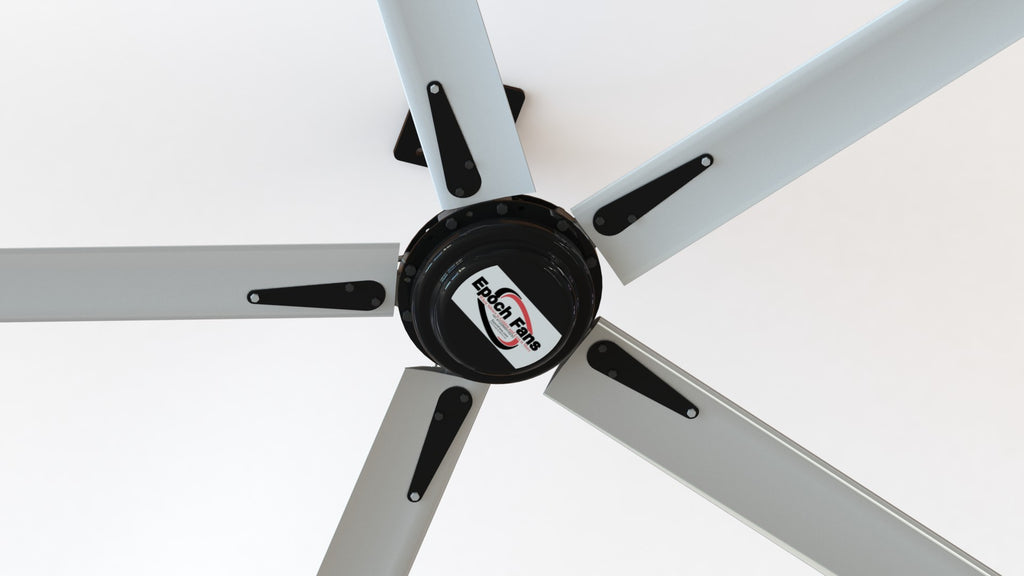

06-ft 5-Blades 200 RPM Commercial HVLS Fan with Hx Motor and Controller - 30Nm/0.4kW/0.5hp
Technical Specifications
| Category | HVLS Commercial Fan |
| Power Rating | Super Efficient Gearless PMSM – Less than 400W |
| Motor Type | 3-Phase PMSM, Gearless, Brushless |
| Motor Insulation Class | Class H |
| Sweep Size | 6 ft |
| Down Rod Length | 2 ft |
| Number of Blades | 5 |
| Blade Profile | Aerodynamic Airfoil Design |
| Blade Material | Anodized 6061-T6 Aluminum |
| Blade Struts | Clear Zinc / High Tensile Steel |
| Blade Width | 123.7 mm |
| Blade Thickness | 1.65 mm |
| Blade End Winglets | Aluminum |
Motor & Electrical Specifications
| Technology | 5-Phase Permanent Magnet Synchronous Motor (PMSM) |
| Maximum Speed | 200 RPM |
| Power Consumption at Max RPM | < 0.4 kW |
| KVA Draw at Max RPM | < 0.5 KVA |
| Input Current | < 4.8A Peak / 1.7A RMS |
| Torque | 30 Nm |
| Input Voltage | 180–240 VAC, Single Phase, 50/60 Hz |
| Power Factor | 0.5 |
Airflow & Coverage
| Maximum Coverage Radius | 22 ft |
| Minimum Distance from Wall | 12 ft |
| Total Coverage Area | 1,500 sq.ft (139 sq.m) |
| Airflow (Max) | 200,000 CFM (Approx.) |
| Fan Weight | 22.7 kg / 50 lbs |
| Noise Level | < 50 dB |
| Minimum Installation Height | > 10 ft |
Safety & Compliance
| Connection Type | Wired |
| Mechanical Safety | Automotive-grade hub with guy wires for motor and blades |
| Standards | UL507, UL1004, UL60730-2-9, UL508C |
| EU Compliance | Directive 2014/35/EU |
| European Standards | EN60335-1:2012 & EN60335-2-80:2003/A2:2009 |
| Sound Certification | NABL Accredited Laboratory |
