A Case Study Epoch HVLS 20-ft Fan By Falco eMotors Inc.

Report No. 032720-01



Problem:

• The atrium in tapesia campus of Don Bosco University is located in the centre of a building as a result the openings at lower levels are not available.

• The tapesia atrium design with natural ventilation but In summer The atrium fills with warm air from the adjoining storeys. this air is further warmed by direct solar heating in the atrium due to this condition occupants feel uncomfortable.

• In this space the air movement  is actually driven by the recirculation rather than the direct main flow from the wind.

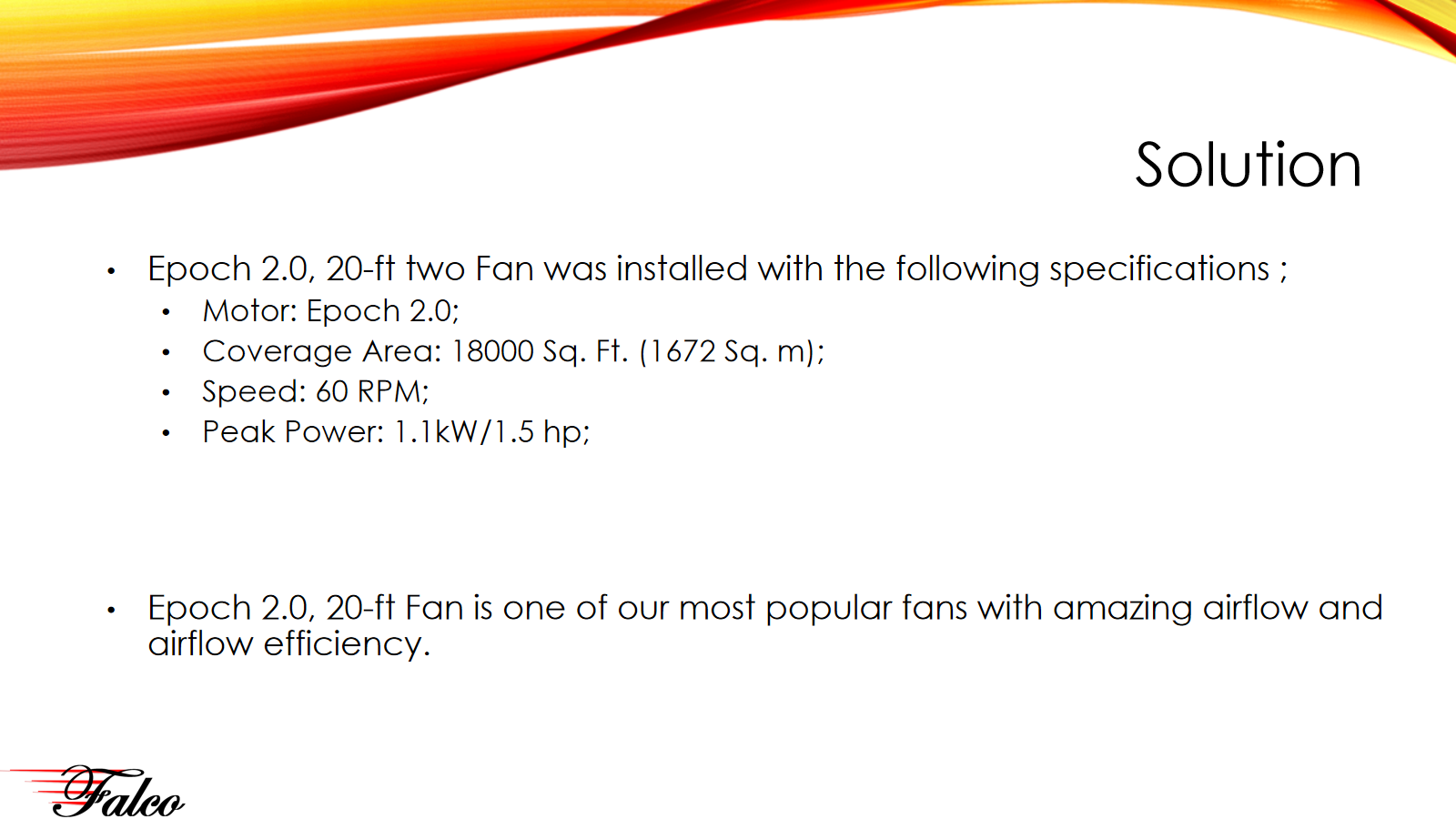

Solution:

• Epoch 2.0, 20-ft two Fan was installed with the following specifications ;

• Motor: Epoch 2.0;

• Coverage Area: 18000 Sq. Ft. (1672 Sq. m);

• Speed: 60 RPM;

• Peak Power: 1.1kW/1.5 hp;

• Epoch 2.0, 20-ft Fan is one of our most popular fans with amazing airflow and airflow efficiency.

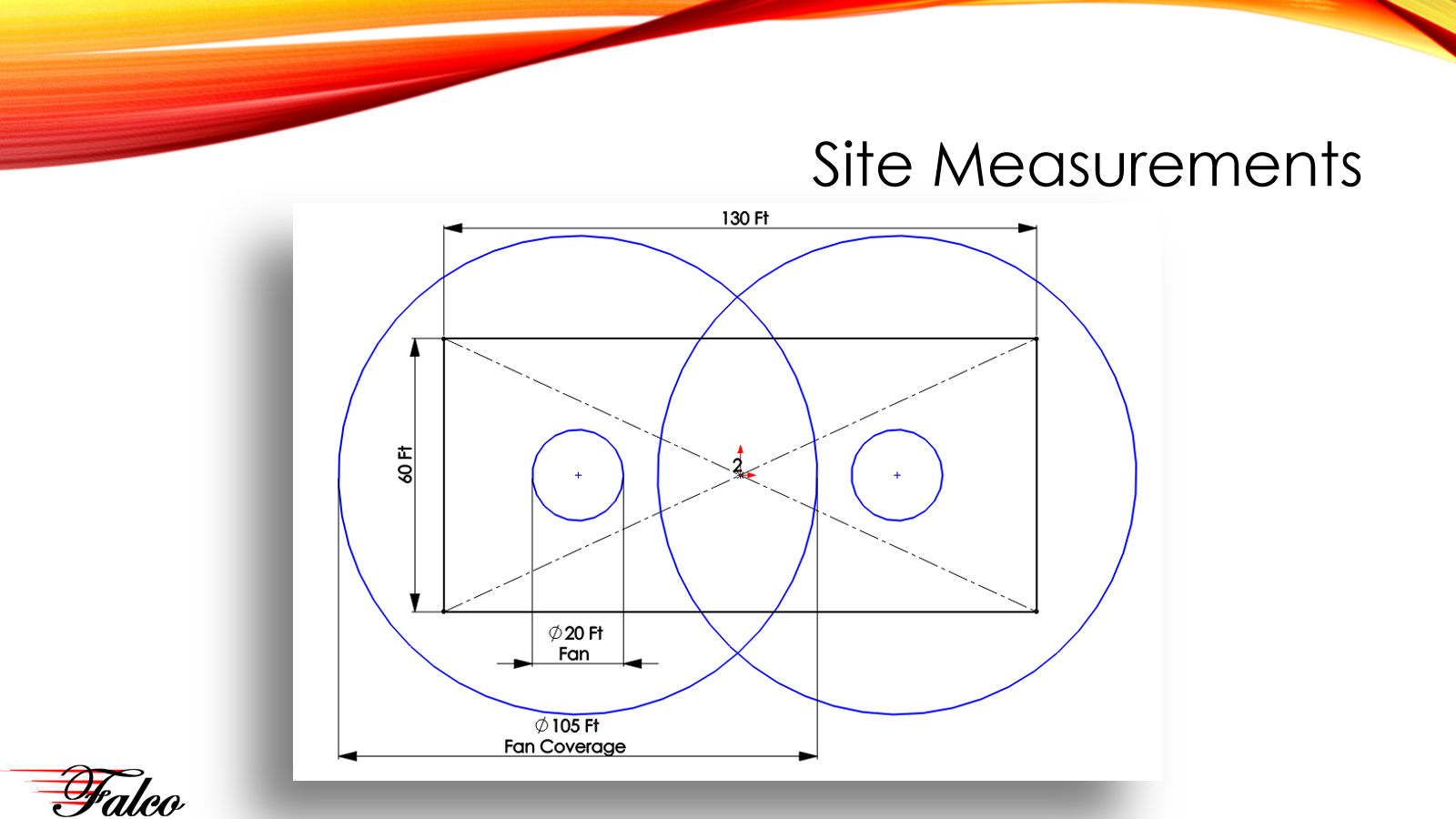

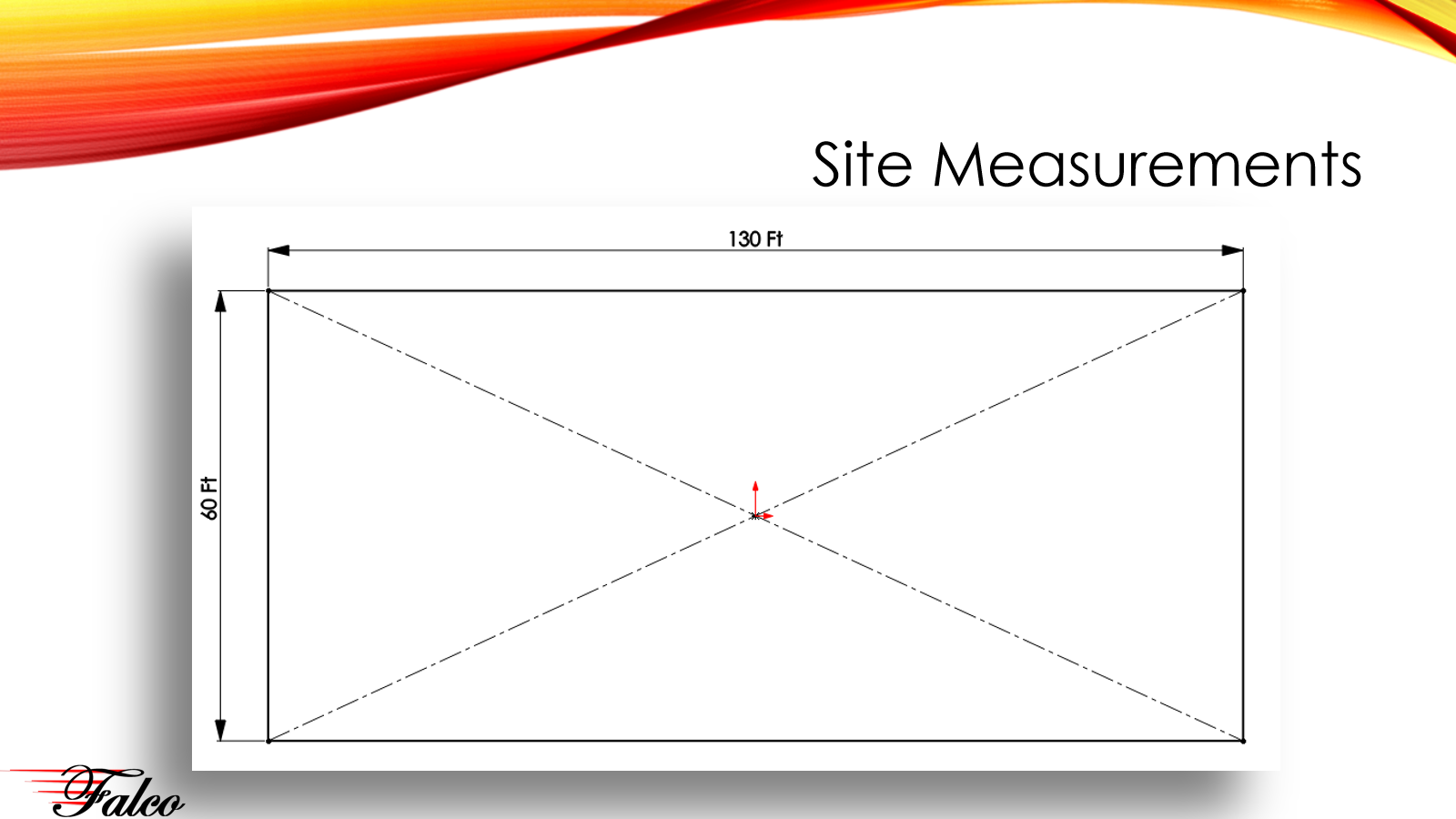

Site Measurements:

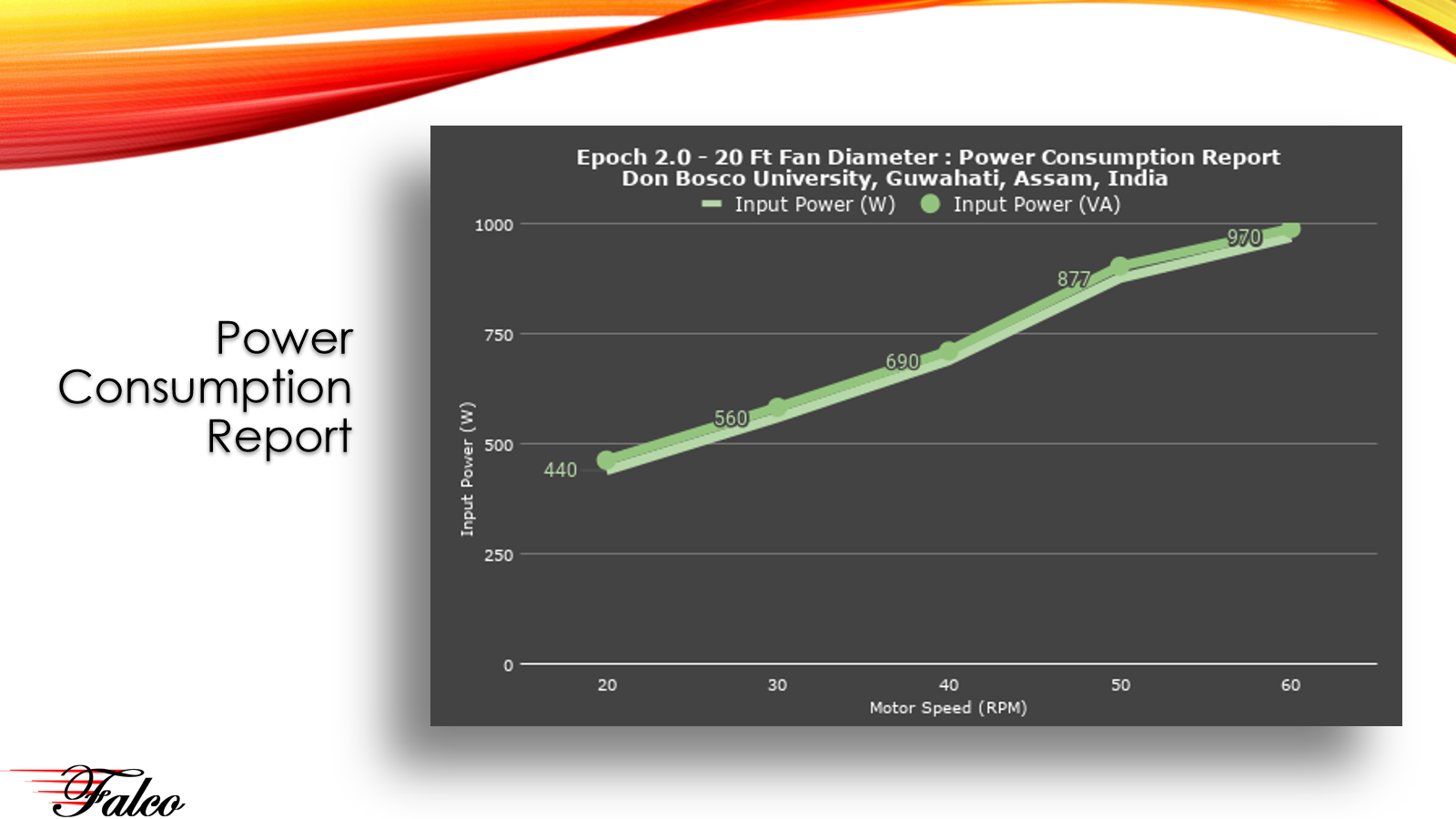

Power Consumption Report:

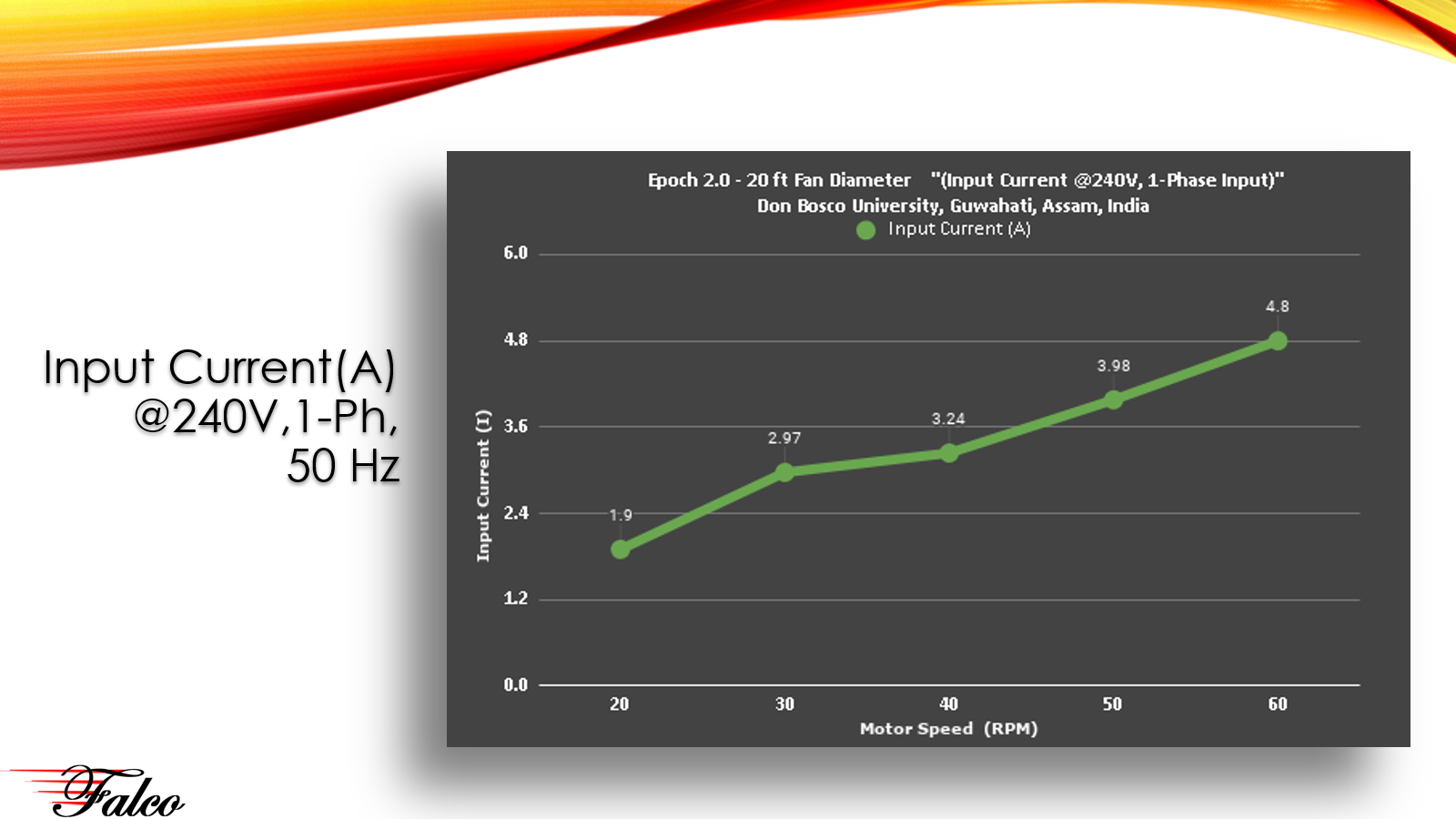

Input Current(A) @240V,1-Ph, 50 Hz :

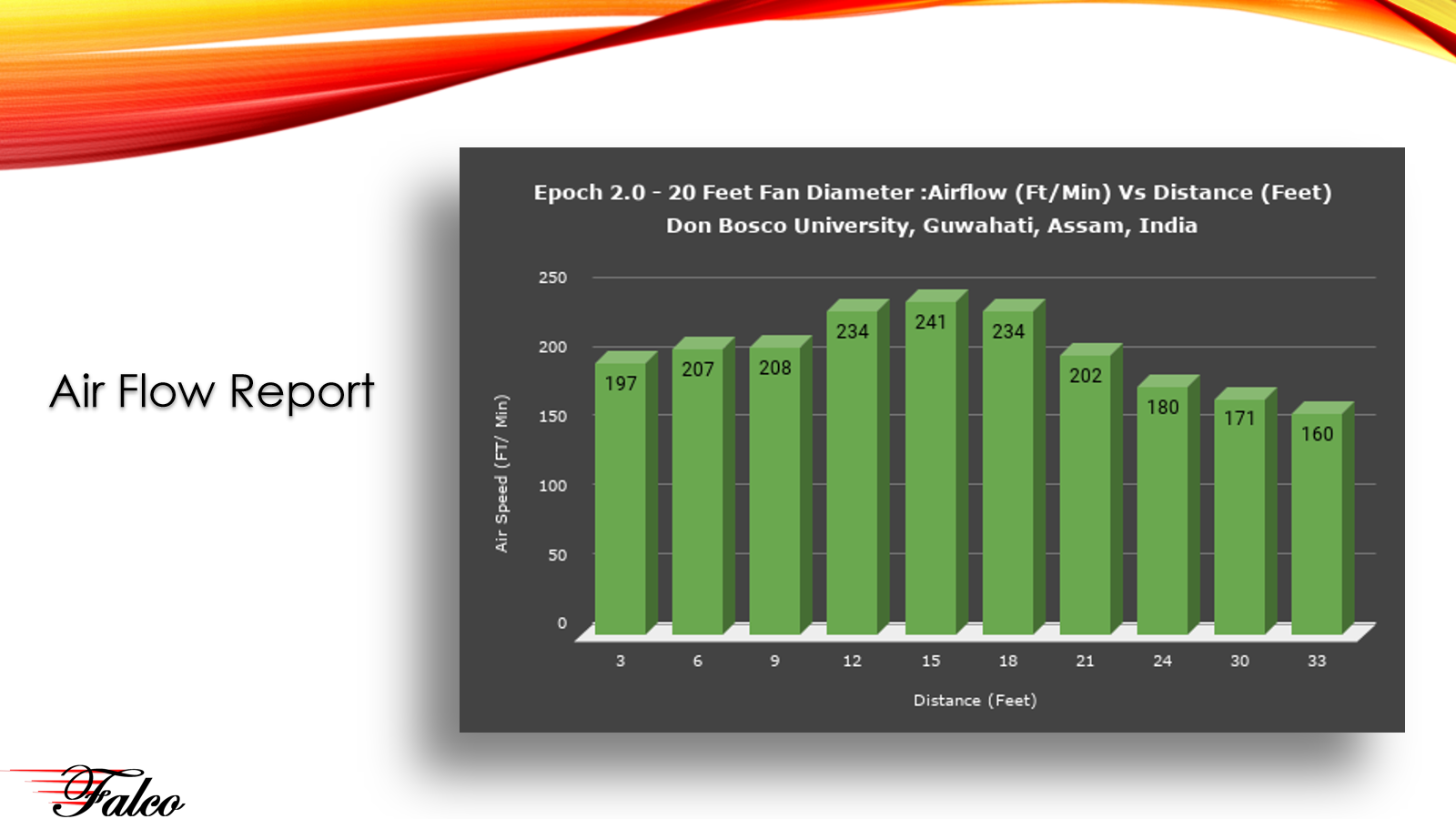

Air Flow Report:

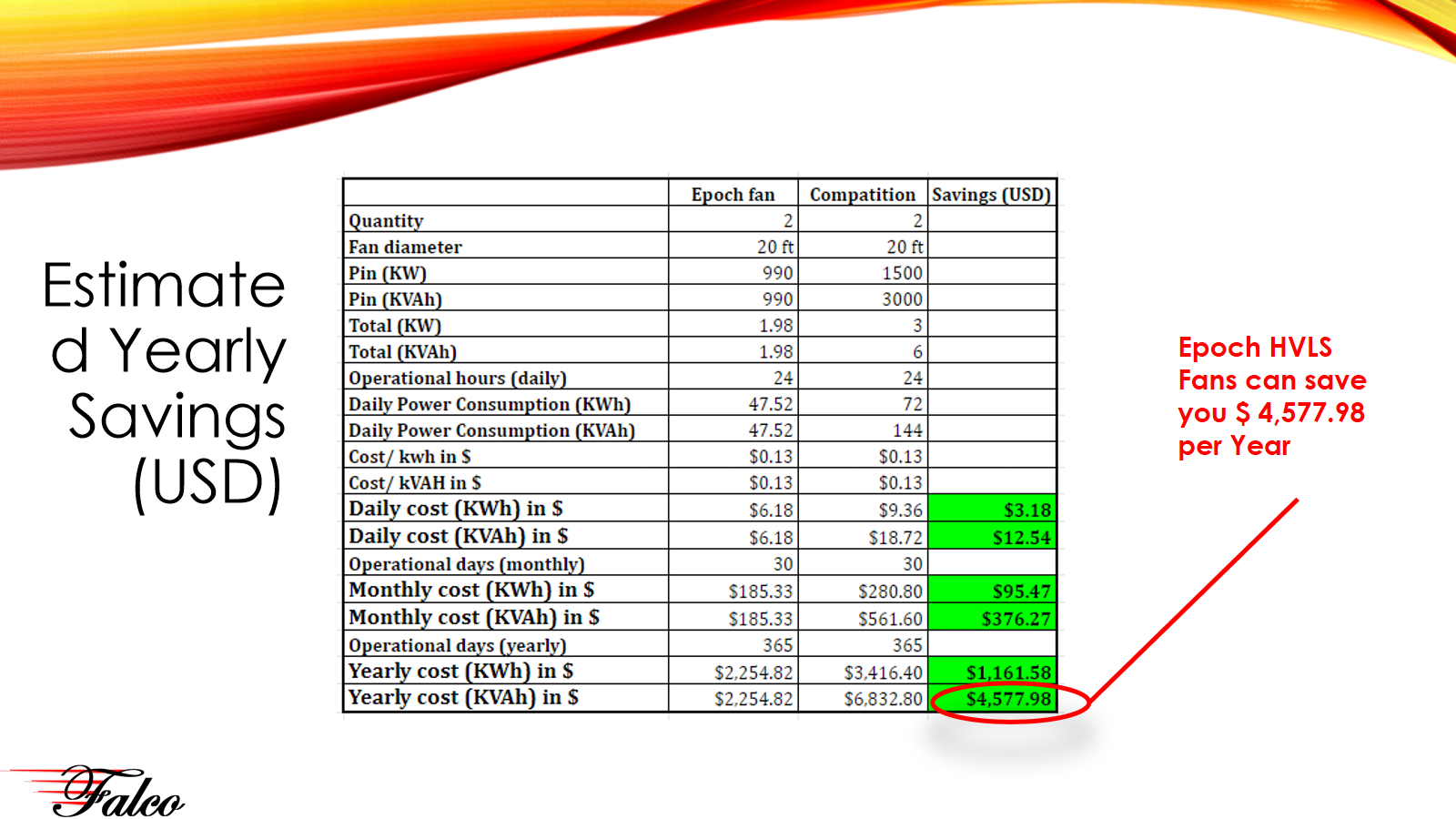

Estimated Yearly Savings (USD):

Epoch HVLS Fans can save you $ 4,577.98 per Year

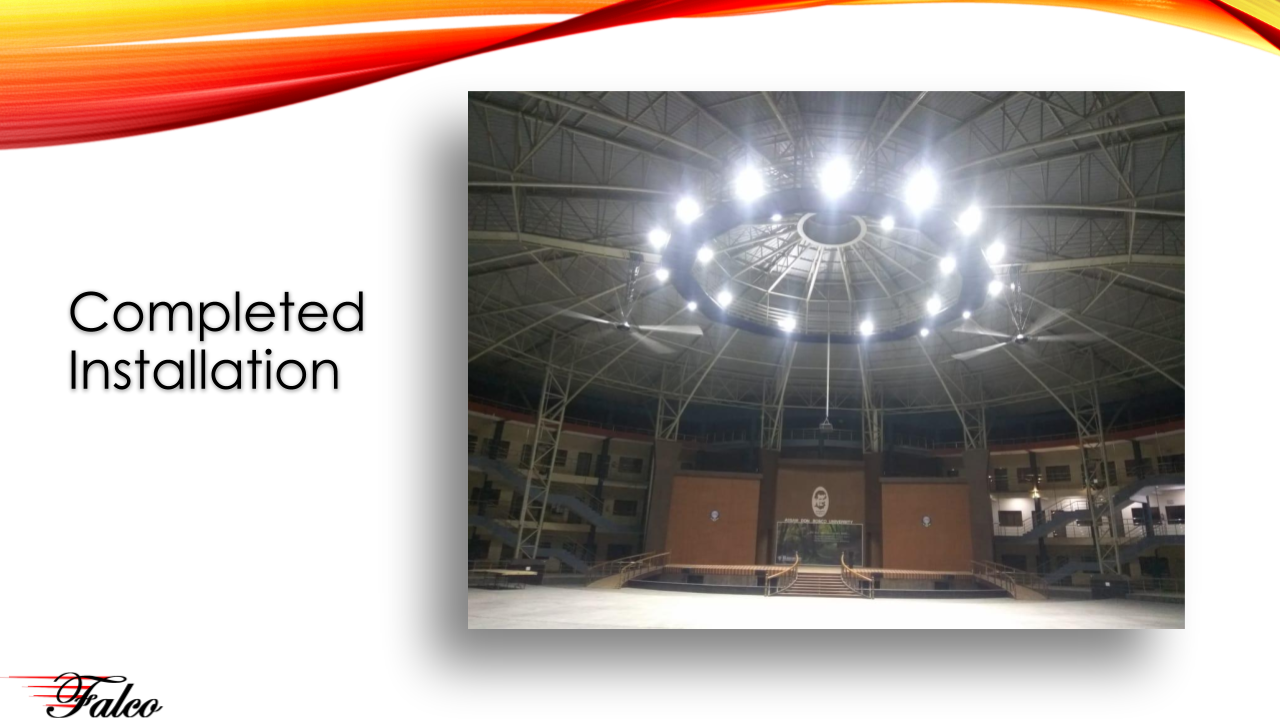

Completed Installation:



Video Link:
